توضیحات

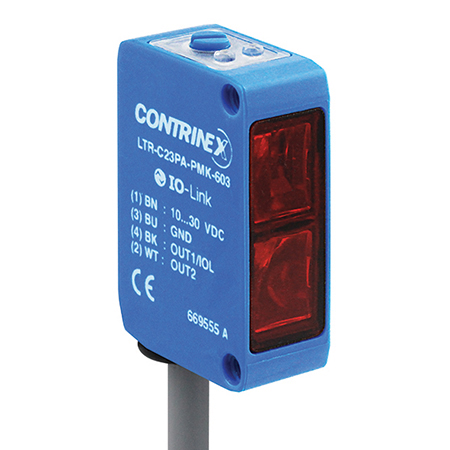

| Operating principle | Diffuse |
|---|---|
| Sensing range typ. Max. | 3…1500 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 30…1500 mm, 3/4-turn pot. |
| Polarity | PNP |
| Output | Light-on/IO-Link + Dark-on |
| Interface | IO-Link |
| Connection | PVC, 2 m, 4 wire |
| Supply voltage | 10…30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25…65 °C |
| Enclosure rating (IP) | IP 67 |
